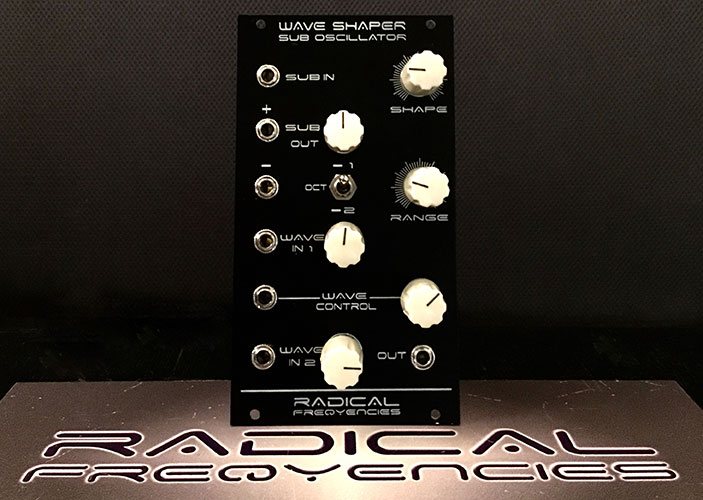

The Radical Frequencies Waveshaper-Suboscillator is a two input wavefolderr with shape
and range controls that allow for timbre manipulation, in conjunction with the input amount on each channel.
The module is one big organic block of harmonic generation.
All controls are interconnected and have a great impact on the final out.
CV control if offered and controls the level of both audio inputs.
A sub oscillator circuit is included, offering switchable -1 and -2 octaves.
The square wave has an inverted output too.
An attenuator is included, providing mixing capabilities of the sub out.
When no sub out is desired to be present in the mix out, the sub osc audio input should have nothing patched in.
- 30 mA +12V
- 26 mA -12V
- 0 mA 5V
- 80 mm deep
